50 piece (MOQ)

Business Type Manufacturer, Exporter, Supplier

Preferred Buyer From

Location Worldwide

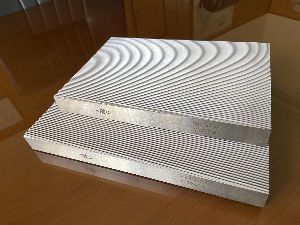

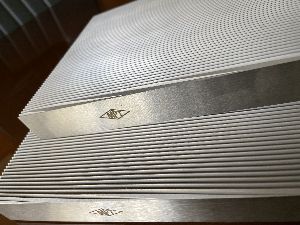

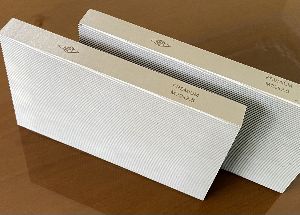

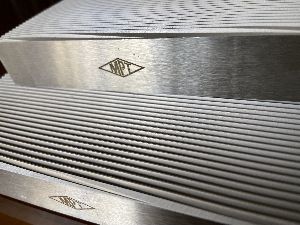

MPTPL manufactures MPT Thread Rolling Flat Dies for Production and Precision Thread Rolling of all kinds of Fasteners made of Mild Steel,High-strength Steel and Stainless steel. The dies are made of Selected Cold Work Tools Steel, which are carefully Machined, Grinded and Heat-treated. Thread Rolling Flat Dies are made in Ground Form with cool cutting technology. MPTPL manufactures Thread Rolling Flat Dies for lengths upto 510 mm and widths as per given thread sizes.



Thread Pitch

  • 0.5MM-0.7MM
  • 0.8MM-1.25MM
  • 1.5MM-3.0MM
  • 8 TPI-26 TPI
  • 28TPI-40TPI
  • 2BA-6BA



Max. Dies Width Thread Form

  • 50MM (2”)
  • 102MM(4”)
  • 205MM (8”)
  • 102MM(4”)
  • 80MM(3”)
  • 50MM(2”)



MPT Dies are made in 3 varients,Regular,Premium and Supreme quality.Regular Dies are economical dies for soft material rolling,Premium for Stainless steel and other materials and Supreme for hard part rolling. Thread Rolling Flat dies are made for all standard Indian Machine Sections and also for other sections like Waterbury Farrel, Hilgeland, saspi, Ingramatic, Chun-zu type blocks. Dies are supplied in both Grit Blast and shining Finish. MPTPL also undertakes Rethreading & Re-grinding of Threads on Thread Rolling Flat Dies at very nominal prices.

Read More...


Specifications

Thread Standards Pitch Max. Width of Dies Made
Metrics (ISO) 0.5-0.75 mm 50 mm (2")
Metrics (ISO) 0.8-1.75 mm 105 mm (4")
Metrics (ISO) 2.0-3.5 mm 150 mm (6")
Unifieds 28tpi-40tpi 50 mm (2")
Unifieds 13tpi-24tpi 105 mm (4")
Unifieds 7tpi-12tpi 150 mm (6")
Whitworth (B.S.) 28tpi-40tpi 50 mm (2")
Whitworth (B.S.) 18tpi-26tpi 105 mm (4")
Whitworth (B.S.) 7tpi-16tpi 150 mm (6")
